Diaphragm Valves: Complete Guide to Types & Selection

If you run a dust collection system, chances are you’ve dealt with this problem before: bags not cleaning properly, compressed air usage creeping up, or a pulse valve that just stopped firing on schedule. More often than not, the root cause traces back to one small but critical component – the diaphragm valve.

Diaphragm valves are the workhorses behind reverse jet pulse cleaning systems. They control the short, sharp bursts of compressed air that dislodge dust cake from filter bags, keeping your baghouse running efficiently. When they wear out or are mismatched to your system, cleaning efficiency drops, compressed air costs rise, and unplanned downtime follows.

This guide covers everything a plant engineer, maintenance team, or purchase manager needs to know about diaphragm valves – how they work, the different types available, material selection, common applications, and how to choose the right one for your dust collection system.

What Is a Diaphragm Valve?

A diaphragm valve is a flow control device that uses a flexible diaphragm to open and close a flow path, instead of a ball, gate, or plug. In dust collection systems specifically, diaphragm valves are used as pulse valves – they release short bursts of compressed air (typically 100-150 milliseconds) into filter bags to clean off accumulated dust cake.

The diaphragm itself sits between the valve body and the compressed air chamber. When air pressure builds on one side, the diaphragm lifts or flexes to open the valve; when pressure equalizes or a solenoid pilot signals closure, the diaphragm returns to its seated position, sealing the valve shut.

This simple mechanical action – repeated thousands of times a day in an active dust collector – is why diaphragm quality and valve design matter so much for long-term reliability.

How Does a Diaphragm Valve Work?

Understanding the working principle helps explain why the right valve selection matters so much for system performance.

1. Compressed air enters the valve body and fills the chamber behind the diaphragm, holding it in the closed position under normal operating conditions.
2. A pilot signal – usually from a solenoid valve controlled by a sequential timer controller – momentarily releases the air pressure holding the diaphragm shut.
3. The pressure differential causes the diaphragm to lift, opening the valve and allowing a high-velocity pulse of compressed air to shoot through the blow pipe and into the filter bags.
4. The pulse duration is brief – long enough to shock the dust cake off the bag surface, but short enough to conserve compressed air.
5. The diaphragm reseats, closing the valve until the next scheduled pulse.

This cycle repeats continuously, following a sequence set by the dust collector’s timer controller, cleaning each row of bags in turn without shutting down the system.

Why Diaphragm Valves Are Important in Dust Collection Systems

A diaphragm valve might be a small part of a much larger dust collection system, but its condition has an outsized effect on overall performance. Here’s why:

• Cleaning efficiency depends on it. A worn or leaking diaphragm delivers a weaker pulse, which means bags don’t clean fully, differential pressure across the baghouse rises, and airflow drops.
• Compressed air is expensive. Diaphragm valves that don’t seal properly leak air continuously, driving up compressor run time and energy costs – often silently, until the utility bill reflects it.
• Downtime is costly. A stuck or failed diaphragm valve can mean an entire row of bags stops cleaning, accelerating bag blinding and forcing early replacement or unplanned shutdowns.
• Bag life is directly affected. Inconsistent or weak pulsing leads to dust cake buildup, which increases pressure drop and shortens filter bag service life.

In short, diaphragm valve reliability is directly tied to compressed air optimization, bag filter performance, and equipment uptime – three things every plant engineer is measured on.

Types of Diaphragm Valves

Not all diaphragm valves are built the same way, and the right type depends on your control setup and application.

1. Pneumatic Diaphragm Valve

This is the standard type used in most reverse pulse jet dust collectors. A pneumatic diaphragm valve is triggered by a pilot air signal, usually released through a solenoid valve. It’s simple, robust, and well-suited to continuous industrial duty cycles, which is why it remains the most widely used design across cement plants, foundries, and processing industries.

2. Solenoid Diaphragm Valve

A solenoid diaphragm valve integrates the solenoid pilot directly with the diaphragm valve assembly, rather than using a separate pilot valve. This design simplifies wiring and installation and is commonly specified where panel space is limited or where a more compact, integrated unit is preferred. It’s particularly common in tank-mounted valve setups, where the valve is mounted directly onto the compressed air storage tank.

3. Angle Type vs. Straight-Through Diaphragm Valves

• Angle type valves change the direction of airflow by 90 degrees and are common in tank-mounted installations where space and pipe routing are constraints.
• Straight-through (in-line) valves maintain a linear flow path and are typically used where pipe runs are already aligned with the blow pipe manifold.

4. Threaded vs. Flanged Connection Valves

Smaller diaphragm valves (typically up to 2″) are usually threaded for ease of installation and maintenance, while larger sizes may use flanged connections for added structural stability in high-pressure or high-frequency cycling applications.

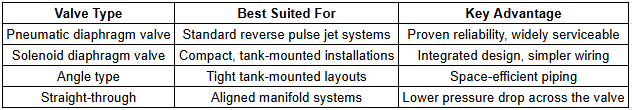

Comparison at a Glance

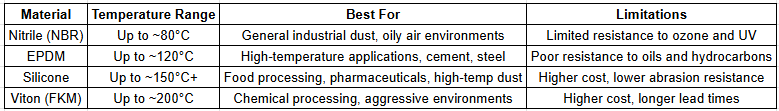

Diaphragm Materials: What They’re Made Of and Why It Matters

The diaphragm material is arguably the single most important selection factor, because it directly determines service life, chemical resistance, and temperature tolerance. Here’s how the common materials compare:

Practical example: A cement plant running a baghouse near a kiln, with dust temperatures regularly exceeding 100°C, will typically need EPDM or silicone diaphragms rather than standard nitrile – using the wrong material here is one of the most common reasons for premature diaphragm failure in high-temperature applications.

Common Industrial Applications of Diaphragm Valves

Diaphragm valves are used wherever reverse jet pulse cleaning is part of the dust or fume collection process, including:

• Cement plants – clinker cooler dedusting, raw mill and kiln baghouses
• Steel and foundries – furnace fume extraction, sand handling dust collection
• Pharmaceutical manufacturing – powder handling and containment systems requiring high cleanliness standards
• Power plants – coal handling, ash handling, and flue gas dust control
• Food processing – grain handling, flour milling, and spice processing dust extraction
• Chemical industries – dust and fume control in powder handling processes
• Textile mills – fiber and lint dust collection
• Mining and mineral processing – crusher and screening plant dust suppression
• Woodworking industries – sawdust and wood chip collection systems

Across all these industries, the underlying requirement is the same: a reliable pulse valve that performs consistently, cycle after cycle, without unplanned failures.

How to Choose the Right Diaphragm Valve for Your System

Selecting the correct diaphragm valve isn’t just about matching a pipe size. Consider these factors:

1. Operating temperature. Match the diaphragm material to your actual dust stream temperature, including peak conditions, not just average operating temperature.

2. Compressed air pressure and quality. Check your system’s operating pressure range and whether the air supply is well-filtered and dry, since moisture and oil contamination can degrade diaphragms faster than expected.

3. Cycle frequency. High-frequency cleaning cycles (common in heavy dust-load applications) demand more durable diaphragm construction to avoid fatigue failure.

4. Chemical exposure. If your process involves aggressive chemicals, solvents, or corrosive dust, standard nitrile or EPDM may not hold up – Viton or specialty compounds may be necessary.

5. Valve size and blow pipe compatibility. The valve must be correctly sized to the blow pipe and bag row it services; undersized valves reduce pulse effectiveness, while oversized valves waste compressed air.

6. Mounting configuration. Confirm whether you need a tank-mounted valve, pipe-away configuration, angle type, or straight-through design based on your existing manifold layout.

7. Supplier reliability and spare parts availability. Since diaphragm valves are wear components, working with a diaphragm valve manufacturer that maintains consistent quality and offers readily available spares reduces long-term maintenance headaches.

Maintenance Tips for Longer Diaphragm Valve Life

Diaphragm valves are wear parts, but proactive maintenance significantly extends their working life and protects overall system efficiency:

• Inspect diaphragms during scheduled shutdowns rather than waiting for visible failure – hairline cracks and hardening are early warning signs.
• Monitor compressed air quality. Install and maintain air line filters and moisture separators; contaminated air accelerates diaphragm wear.
• Check pulse timing and duration settings on your sequential timer controller periodically, since incorrect timing can cause unnecessary diaphragm cycling and premature fatigue.
• Listen for air leaks. A continuous hissing sound from a valve, even when it should be closed, usually indicates a diaphragm seating issue.
• Track differential pressure trends across the baghouse – a gradual rise often points to weakening pulse performance from aging valves.
• Keep spare diaphragm kits on hand for critical systems, since even a single failed valve can affect an entire bag row’s cleaning cycle.

Common Mistakes to Avoid When Selecting or Maintaining Diaphragm Valves

1. Choosing the cheapest option without checking material compatibility. A lower-cost valve with the wrong diaphragm material for your temperature or chemical environment often costs more in downtime and premature replacement.
2. Ignoring compressed air quality. Even a well-built diaphragm valve degrades faster when running on unfiltered, moisture-laden compressed air.
3. Overlooking cycle frequency requirements. High dust-load systems need valves rated for frequent cycling – using a standard-duty valve in a heavy-duty application shortens service life significantly.
4. Mixing incompatible valve and timer controller settings. Pulse duration and interval settings should be matched to your specific valve and bag configuration, not left at generic default settings.
5. Delaying replacement until failure. Reactive maintenance almost always costs more than a planned diaphragm replacement during scheduled downtime.
6. Not consulting an experienced supplier. Generic, one-size-fits-all valve recommendations often don’t account for your plant’s specific dust characteristics, temperature, and cycling demands.

Industry Best Practices

Experienced plant maintenance teams typically follow a few consistent practices:

• Standardizing diaphragm valve models across a facility where possible, to simplify spare parts inventory
• Building diaphragm inspection into routine preventive maintenance schedules, not just reactive repairs
• Working with a diaphragm valve manufacturer in India that understands local operating conditions – dust characteristics, ambient temperatures, and compressed air infrastructure common in Indian industrial plants
• Requesting technical guidance on valve selection rather than relying solely on catalog specifications, especially for unusual or high-temperature applications

Diaphragm Valve Price: What Affects the Cost?

Diaphragm valve price varies based on several factors, so there’s no single fixed number that applies across the board:

• Valve size (typically ranging from 1″ to 3″ or larger for industrial dust collection)
• Diaphragm material – silicone and Viton compounds cost more than standard nitrile or EPDM
• Valve type – solenoid-integrated valves may carry a different price point than standard pneumatic pilot-operated valves
• Body material – aluminum, cast iron, or other body constructions affect both cost and durability
• Order quantity – bulk or OEM procurement typically brings per-unit costs down

Rather than comparing price in isolation, it’s worth evaluating total cost of ownership – a marginally higher-priced valve with a longer service life and better chemical/temperature resistance often works out more economical over a 2-3 year period than a cheaper valve requiring frequent replacement.

For an accurate quotation based on your specific application, it’s best to share your system details – dust type, operating temperature, and current valve specifications – with a qualified supplier.

Frequently Asked Questions

What is a diaphragm valve used for? In dust collection systems, a diaphragm valve controls short bursts of compressed air used to clean filter bags during reverse jet pulse cleaning, removing accumulated dust cake and maintaining consistent airflow through the baghouse.

What’s the difference between a pneumatic diaphragm valve and a solenoid diaphragm valve? A pneumatic diaphragm valve is typically triggered by a separate pilot solenoid valve, while a solenoid diaphragm valve integrates the solenoid directly into the valve assembly for a more compact, simplified installation.

How often should diaphragm valves be replaced? Service life depends on cycle frequency, compressed air quality, and diaphragm material, but most industrial diaphragm valves should be inspected during routine maintenance and typically last 1-3 years under normal operating conditions before replacement is needed.

What diaphragm material is best for high-temperature dust collection? EPDM and silicone diaphragms handle higher temperatures better than standard nitrile, making them suitable for applications like cement kilns or steel plant furnaces where dust temperatures regularly exceed 100°C.

Can diaphragm valves be repaired, or do they need full replacement? In most cases, only the diaphragm itself needs replacement rather than the entire valve body, provided the valve body and seating surfaces are still in good condition – this is why keeping diaphragm repair kits in stock is a cost-effective maintenance practice.

What causes a diaphragm valve to fail prematurely? Common causes include poor compressed air quality (moisture and oil contamination), incorrect diaphragm material for the operating temperature, excessive cycle frequency beyond the valve’s rating, and delayed maintenance.

How do I choose the right diaphragm valve size for my dust collector? Valve size should match your blow pipe diameter and the compressed air volume required to effectively clean the connected bag row – an experienced supplier can help calculate this based on your bag configuration and dust load.

Are diaphragm valves the same as pulse valves? In dust collection terminology, the terms are often used interchangeably, since diaphragm valves are the core mechanism inside pulse valve assemblies used for reverse jet pulse cleaning.

Conclusion

Diaphragm valves may be a small component within a much larger dust collection system, but their condition directly affects cleaning efficiency, compressed air consumption, bag life, and overall system uptime. Choosing the right valve type, diaphragm material, and sizing – and maintaining it properly – makes the difference between a dust collector that runs reliably for years and one that generates constant maintenance headaches.

Whether you’re setting up a new baghouse, upgrading an aging system, or simply trying to source a reliable diaphragm valve supplier for ongoing spares, getting the selection right from the start pays off in reduced downtime and lower long-term operating costs.

With over 47 years of experience manufacturing reverse jet pulse valves, diaphragms, and tank-mounted valves for industries across India, Maniks understands the practical realities of keeping dust collection systems running – not just the catalog specifications.
