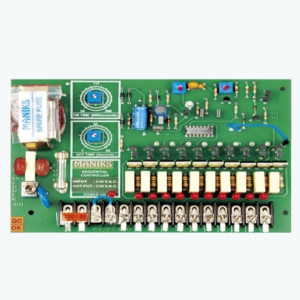

Maniks Solid State Sequential Controller
The MANIKS Sequential Controller has been designed to operate the MANIKS pilot
valves used on dust collector equipment. Light emitting diodes (LEDs) provide visual
indication of which pilot valve is being energized as well as “Power On” indication. The
number of sequenced steps is adjustable from 2 through 10. Presets are provided to
adjust the length of time between valves being de-energized (Pulse Frequency Off time)
and the length of time that the valve is energized (Pulse Duration On time). Silicon
semiconductor components control all timing and logic functions.
Solid State Sequential Controller Operation
Two independent methods of starting and stopping the Controller are provided. The
first method will automatically stop the sequence and reset the Controller to the first
valve position whenever A. C. power is removed and then reconnected.
The second method is by a remote control contact connected to the terminals
provided. When the remote contact is opened, the sequence stops. When the remote
contact is re-closed, the sequence continues from the previous position.
Specification
| SUPPLY VOLTAGE | INPUT FUSE |
|---|---|
| 230VAC | 1.5A |
| 24VDC | 3A |
| 110VAC | 3A |
Current Rating per Sequence Step
| VOLTAGE | MAX INRUSH CURRENT | CONSTANT CURRENT |
|---|---|---|
| 230 VAC | 4 Amp. (50 Hz.) | 2 Amp. (50 Hz.) |
| 110 VAC | 4 Amp. (50 Hz.) | 2 Amp. (50 Hz.) |
Dimension
Ordering Information
Special Flameproof Junction Boxes
We provide special enclosures for timers such as Flameproof junction boxes
are typically used in industries where there is a risk of explosion or fire due to
the presence of flammable gases or combustible dust. Some examples
of these industries include : Oil and gas. Chemical processing. As well as
FRP enclosures, SS enclosures, IP65 enclosures on request.
