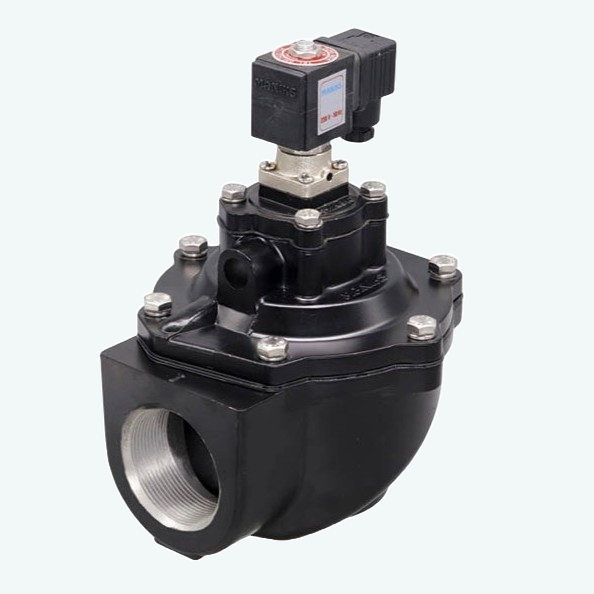

Pilot Operated Reverse Jet Pulse Valve

Maniks Pulse Valves

Maniks has developed pulse valve and pulse jet valve for reverse pulse jet bag filters, offering precisely engineered valve of market need. Pulse Valve has just one moving part , the Spare diaphragm . The unique springless construction provides fast opening and closing of the valve. The high speed operation besides saving of compressed air, helps to provide shock air wave for dislodging of dust from filter bags. High flow, long life and fast diaphragm action produce reliable and economical operation.

Pulse Valve Operation

Maniks pulse valves are operated by integral solenoid pilot operator. When the valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pilot operated valve is de - energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the valve.
Duty Cycle : The relative duty time cycle for ac voltage is 20% and for DC voltage is 10 % .This implies energised time is maximum 1/5th of de-energised time for AC and 1/10th for DC voltage.
Installation : Mounting in any position will not affect pulse valve operation. However good engineering practice is to avoid scale and condensed water entering valve body for trouble free performance . Standard end connections of BSP are provided.

Pulse Valve Specification

Pulse Valve Specifications
Pulse Valve Specifications
Electrical Standard Voltage
AC 50Hz .. 24/220 Volts, DC 24V, fluctuation ± 10%
20 W / 19 VA
DC Current / AC Current
Maximum Medium Temperature
65°C
Maximum Ambient Temperature
55°C

Pulse Valve Dimension

Dimension Table
DIMENSION TABLE
TYPE NAME THREAD SIZE A(Inch) B(MM) C(MM) L(MM) W(MM) H(MM) Weight Gms.
MEP - 16 3/4" 3/4" 52 22 90 75 130 750
MEP - 18 1" 1" 52 22 90 75 130 700
MEP - 112 1 1/2" 1 1/2" 72 31 133 137 152 1250
MEP - 114 1 1/2" 1 1/2" 72 31 133 137 191 1570
MEP - 116 2" 2" 94 45 167 165 229 3000
MEP - 120 2 1/2" 2 1/2" 94 45 167 165 229 2600

Special Flameproof Enclosures for Valves

We also cater to special requirement such as flame proof enclosures for valves
